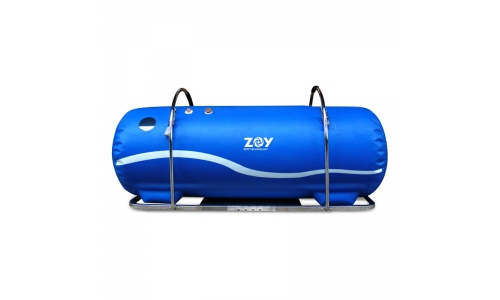

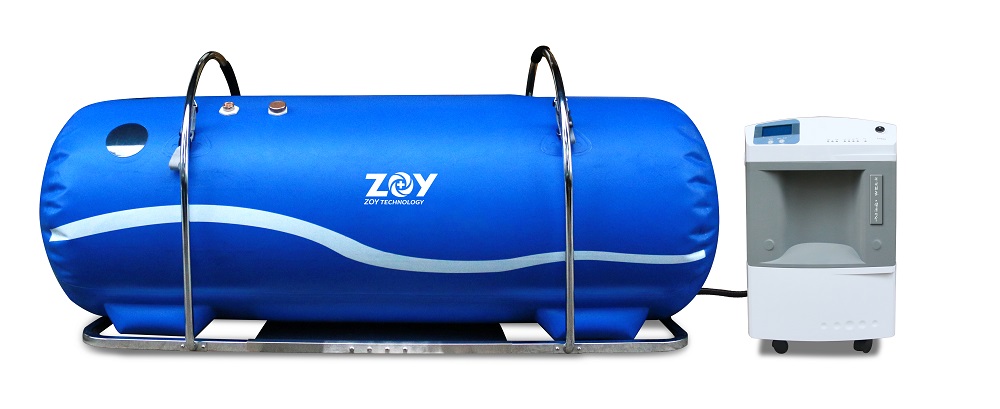

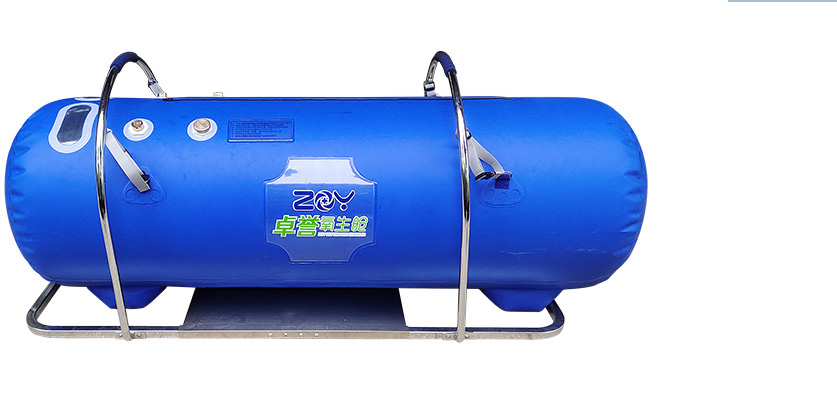

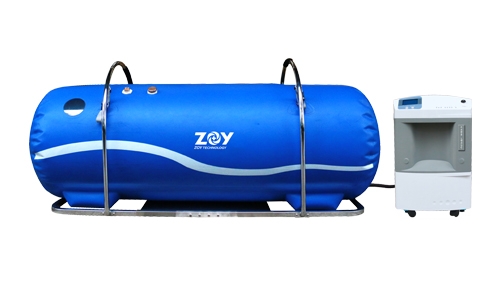

ZOY soft shell hyperbaric oxygen chamber includes soft chamber, PSA oxygen concentrator and air cooler (Optional).
Portable Lying type oxygen chamber could meet various requirement suitable for hospital, clinic, home, sport gym, beauty spa, etc..with different healthcare function.
PSA oxygen concentrator pumps 90%-96% oxygen with 5LPM and ambient air with 70LPM into the chamber to create an oxygen-rich and high atmospheric pressure environment.
In hyperbaric oxygen chamber, the purity of oxygen could up to more than 25%-30% ( only 21% in our normal atmosphere) and the atmospheric pressure will be up to 1.3 times higher than normal pressure.
The oxygen breathing in such rich oxygen and pressurized chamber would help the body receive sufficient oxygen and transport it to blood cells to promote the tissue cell ls to get supplemental oxygen and to improve the natural healing powers of our body.
Chamber type |
Soft Chamber |
Oxygen supply type |
PSA type |
Material of chamber |
TPU |
Size of ZOY chamber |
700*700*1900mm |
Installation minimum space |
1000*1000*2300mm |
Weight of ZOY chamber |
36kg |

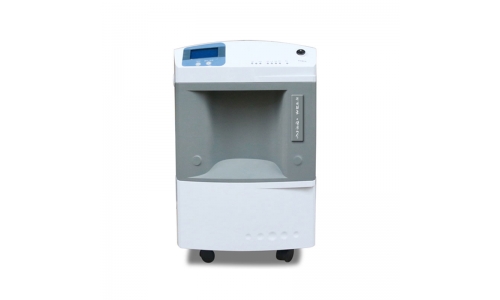

Size of oxygen generator |
365*375*600mm |
Weight |
27kg |
Oxygen concentration of oxygen generator(snorting concentration) |
≥93%±3% |
Oxygen concentration in chamber(average value) |
≤25% |
Oxygen flow |
0-10L/min |
Noise |
≤58dB(average value) |
Power |
550W |
Voltage |
AC220V±22V;50±1Hz |
Environmental temperature |
-10°C~40°C;20%~85%(Relative humidity) |
Storage temperature |
-20°C~60°C |
